Product:
AT5010D portable digital storage 150KHz-1050MHz Spectrum Analyzer,FREE SHIPING
Catagory:
Brand:
ATTEN
Price:
1.00/Set
Min. Order:
1 Set
Amount:
5000 Set
Delivery:
Deliver within days after payment.
Update:
2015-04-08 09:20
Views:
229
  Inquiry
Product Details

Quick Details

Place of Origin: China (Mainland) Brand Name: ATTEN Model Number: AT5010D

Specifications

AT5010D portable digital storage 150KHz-1050MHz Spectrum Analyzer,FREE SHIPING



1283310131221_hz-cnmyalibaba-web1_58126

Frequency Range0.15-1050MHz
Stability+/-10ppm/Year
Aging+/-2ppm/Year
Frequency Display Resolution10kHz
Reading accuracy+/-2%*Sweep +5*10*3 center frequency+10kHz
Adjusting range of center frequency0.15-1050MHz
Frequency generatingTCXO,DDS (digital frequency compound)
Sweep span range0 level and -1000MHz
Range of marked frequency150 KHz auto set auto catch and auto track
Resolution bandwidth400kHz 20kHz
Video filter bandwidth4kHz
Sweep frequency20ms
Scope range+13dBm-100dBm
Display7.0 inch color TFT LCD
Display calibration10dB/div, logarithm
Display range80dB(10dB/div)
Frequency vibration of scope0 level,resolution bandwidth 400kHz<+/-4dBm
Reference calibration signal50MHz,-27dBm
Input attenuator0-50dB(5*10dB)
Accuracy≤±1.5dB
Standard reference level-27 dBm ±1.5dBm,500MHz
Accuracy(reference level)500MHz(CF),0 level,RBW400kHz: +/-2dB
Min average noise≤-90dBm
Adjustment of three steps2 signals at -27dBm,>3MHz alternation
Second harmonics contain-27dBm,0dB attenuation,≤-50dBc
VSWR(attenuation)Type:1.5:1

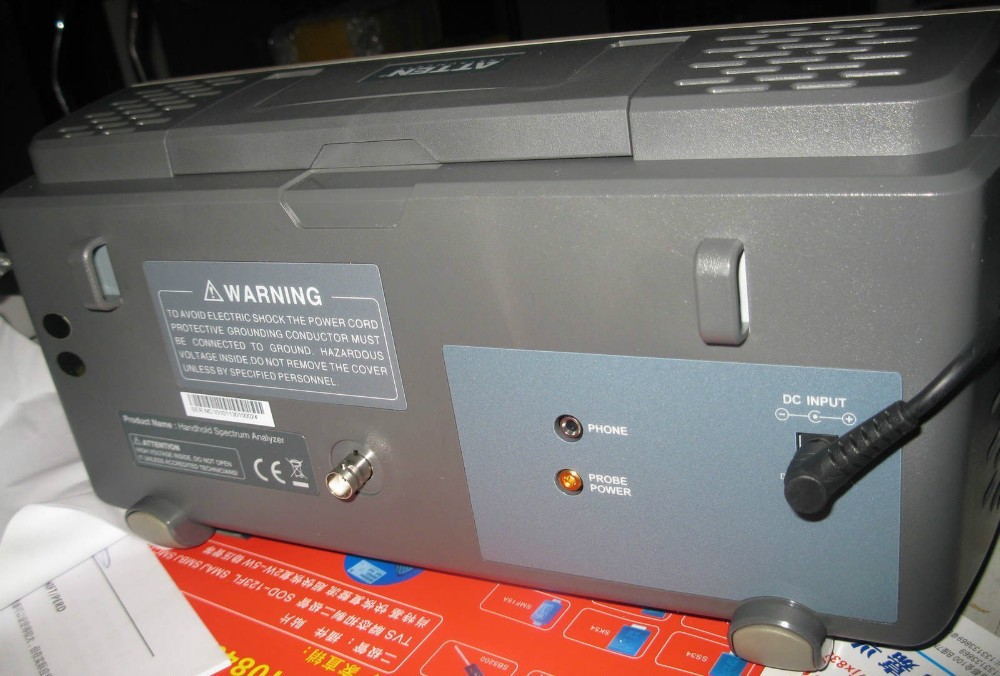

Signal inputConnector BNC(F)
Impedance50Ω
Max durative RF input level+10dBm(0.1W)
Max DC input voltag+/-25V
Power to the probe AZ5306VDC
Audio frequency output3.5mm,tansmitter connector FM
Scrolling-control inputCenter frequency control by FLY mode key
 InterfaceUSB(H) USB(D) RS-232(serial) LAN(Net interface)5010D716797224_130716797229_491 716797216_271 716797236_304716797207_473
